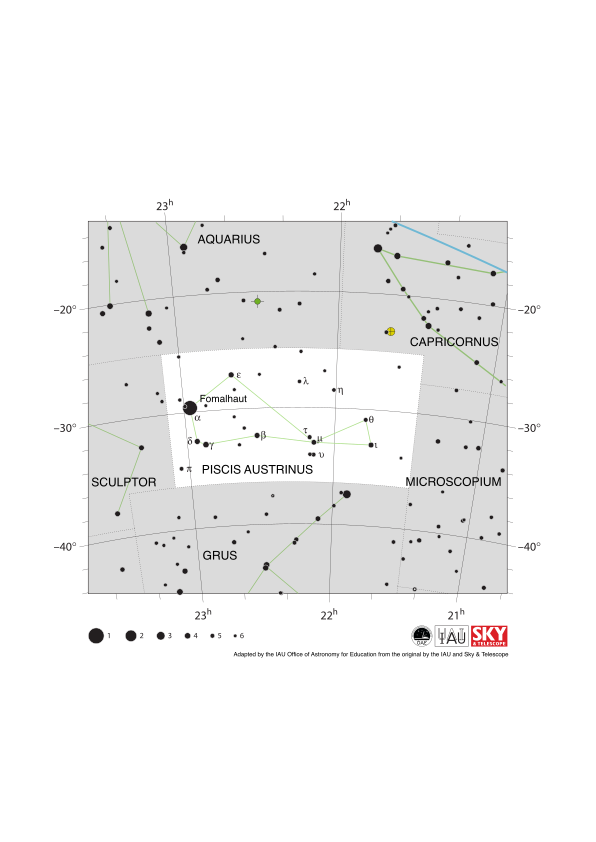

Diagram caption: The constellation Piscis Austrinus with its bright stars and surrounding constellations. Piscis Austrinus is surrounded by (going clockwise from the top): Aquarius, Capricornus, Microscopium, Grus and Sculptor.

Piscis Austrinus is a southern constellation and thus the whole constellation is visible at some point in the year throughout the southern hemisphere. The whole constellation is also visible to some equatorial regions of the northern hemisphere with parts of the constellation visible to the remaining equatorial and some temperate northern hemisphere regions. Piscis Austrinus is best viewed in the evening in the northern hemisphere autumn and southern hemisphere spring.

The y-axis of this diagram is in degrees of declination with north as up and the x-axis is in hours of right ascension with east to the left. The sizes of the stars marked here relate to the star's apparent magnitude, a measure of its apparent brightness. The larger dots represent brighter stars. The Greek letters mark the brightest stars in the constellation. These are ranked by brightness with the brightest star being labeled alpha, the second brightest beta, etc., although this ordering is not always followed exactly. The dotted boundary lines mark the IAU's boundaries of the constellations and the solid green lines mark one of the common forms used to represent the figures of the constellations. The blue line in the top right of the diagram marks the ecliptic. Neither the constellation boundaries, nor the lines joining the stars, nor the ecliptic, appear on the sky.

Diagram credit: Adapted by the IAU Office of Astronomy for Education from the original by the IAU and Sky & Telescope. Credit Link

Diagram translation status: Not yet approved by a reviewer
Related glossary terms: 天球坐标 , 宝瓶座 , 摩羯座 , 星座 , 视星等 , 赤纬 , 赤经（RA） , 黄道
Categories: Naked Eye Astronomy
