This page describes an image Horologium Constellation Map
Download PDF File (PDF file 151.54 kB)
Diagram caption:

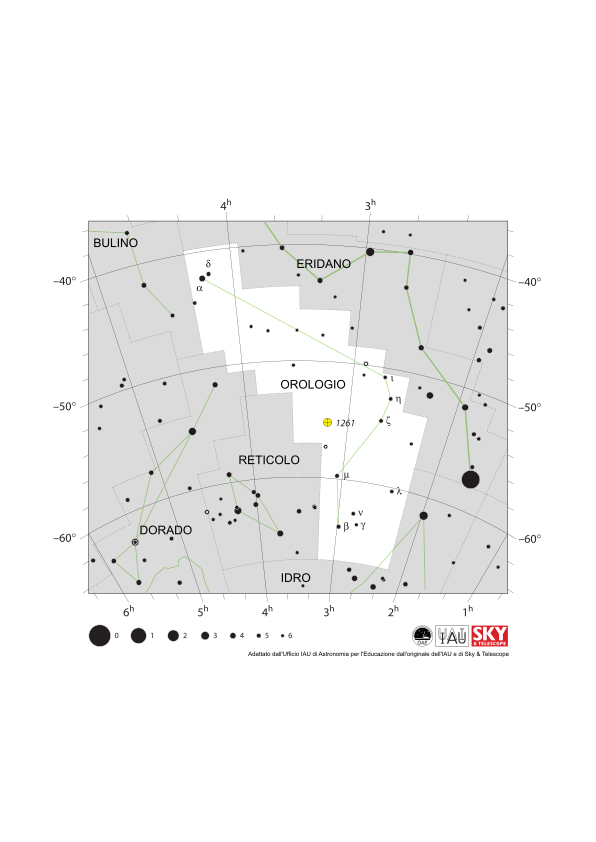

The constellation Horologium with its bright stars and surrounding constellations. Horologium is surrounded by (going clockwise from the top): Eridanus, Hydrus, Reticulum, Dorado and Caelum.
Horologium is a southern constellation and thus is visible in the whole southern hemisphere at some point in the year. The whole constellation is also visible from equatorial parts of the northern hemisphere with parts of it visible to some northern temperate regions. Horologium is circumpolar in antarctic and some temperate regions of the southern hemisphere. This constellation is best viewed in the evenings in the northern hemisphere winter and southern hemisphere summer.
The globular cluster NGC 1261 lies in Horologium, it is marked here with a yellow circle with a plus sign superimposed on it.
The y-axis of this diagram is in degrees of declination with north as up and the x-axis is in hours of right ascension with east to the left. The sizes of the stars marked here relate to the star's apparent magnitude, a measure of its apparent brightness. The larger dots represent brighter stars. The Greek letters mark the brightest stars in the constellation. These are ranked by brightness with the brightest star being labeled alpha, the second brightest beta, etc., although this ordering is not always followed exactly. The dotted boundary lines mark the IAU's boundaries of the constellations and the solid green lines mark one of the common forms used to represent the figures of the constellations. Neither the constellation boundaries, nor the lines joining the stars appear on the sky.
Diagram credit: Adapted by the IAU Office of Astronomy for Education from the original by the IAU and Sky & Telescope. Credit Link
