This page describes an image Equuleus Constellation Map
Download File ( image 61.60 kB)
Download PDF File (PDF file 143.63 kB)
Diagram caption:

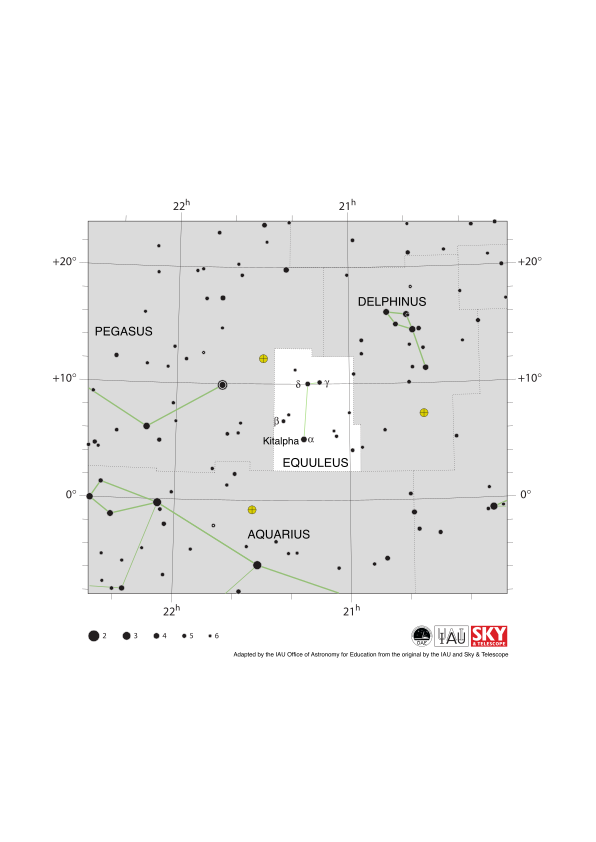

The constellation Equuleus with its brighter stars and surrounding constellations. Equuleus is surrounded by (going clockwise from the top): Delphinus, Aquarius and Pegasus. It is a relatively small constellation with few bright stars.
Equuleus lies just north of the celestial equator and thus the whole constellation is visible at some point in the year to all but the most antarctic regions. Equuleus is best viewed in the evening in the early northern hemisphere autumn and early southern hemisphere spring.
The y-axis of this diagram is in degrees of declination with north as up and the x-axis is in hours of right ascension with east to the left. The sizes of the stars marked here relate to the star's apparent magnitude, a measure of its apparent brightness. The larger dots represent brighter stars. The Greek letters mark the brightest stars in the constellation. These are ranked by brightness with the brightest star being labeled alpha, the second brightest beta, etc., although this ordering is not always followed exactly. The dotted boundary lines mark the IAU's boundaries of the constellations and the solid green lines mark one of the common forms used to represent the figures of the constellations. Neither the constellation boundaries, nor the lines joining the stars appear on the sky.
Diagram credit: Adapted by the IAU Office of Astronomy for Education from the original by the IAU and Sky & Telescope. Credit Link
Diagram license: Creative Commons Attribution 4.0 International (CC BY 4.0) Creative Commons Attribution 4.0 International (CC BY 4.0) icons
Related glossary terms:
Apparent Magnitude
, Aquarius
, Celestial Coordinates
, Constellation
, Declination
, Right Ascension (RA)
Categories:
Naked Eye Astronomy
Want to make your own translation or version of this diagram? Then
download the SVG
version of this diagram in English (243.78 kB). You can edit this using
software like Inkscape (free) or Adobe Illustrator
(proprietary). Just remember to credit the author of the original appropriately.

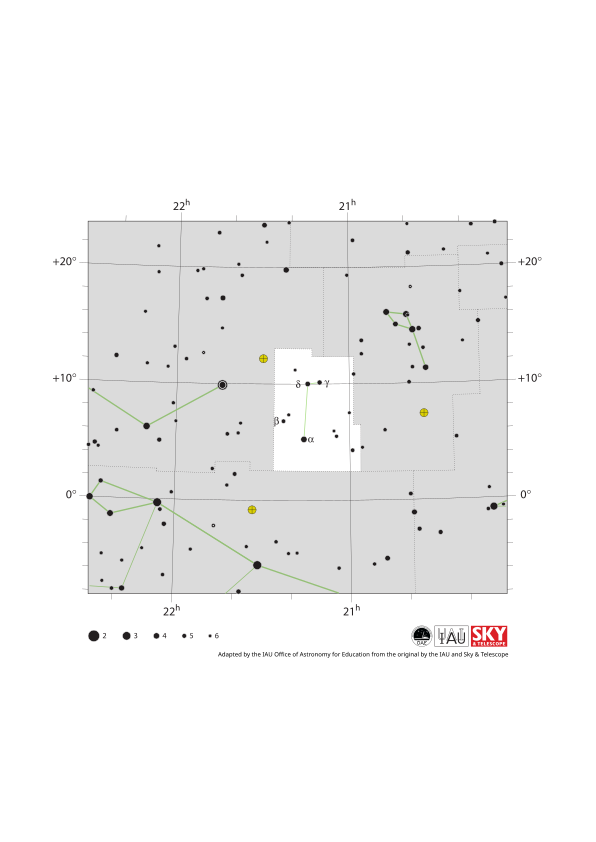

You can also make your own version or translation of this diagram by adding adding text to a version of
this diagram with no text. Just download one of the following files:
Download Text-Free File ( image 54.86 kB)
Download Text-Free PDF File (PDF file 126.32 kB)
In Other Languages
Italian: Mappa della Costellazione del CavallinoSpanish: Mapa de la constelación de Equuleus
The diagram captions presented on the OAE website were written, translated and reviewed by a collective effort from the OAE, the OAE Centers and Nodes, the OAE National Astronomy Education Coordinators (NAECs) and other volunteers. You can find a full list of credits for our translation project here. All media file captions are released under a Creative Commons CC BY-4.0 license and should be credited to "IAU OAE". The media files themselves may have different licenses (see above) and should be credited as listed above under "credit".
If you notice a error in this diagram or its caption then please get in touch.
