This page describes an image Canes Venatici Constellation Map
下载文件 ( 图像 93.71 kB)
下载 PDF 文件 (PDF file 165.31 kB)
图示说明：

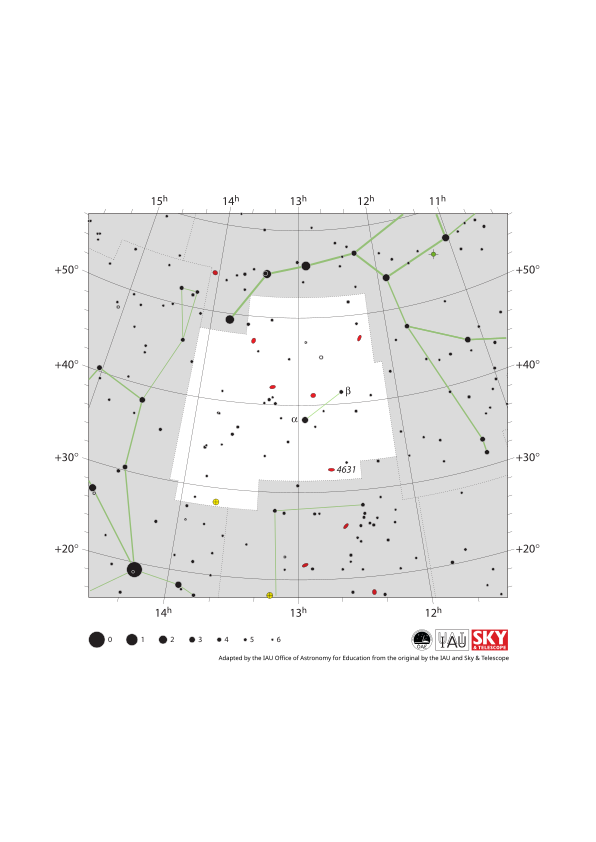

The constellation Canes Venatici with its brighter stars and surrounding constellations. Canes Venatici is surrounded by (going clockwise from the top): Ursa Major, Coma Berenices and Boötes.
Canes Venatici is a northern constellation and thus the whole constellation is visible at some point in the year from the whole of the northern hemisphere. The whole of the constellation is also visible from equatorial regions of the southern hemisphere with parts of it visible from temperate southern regions. The constellation is best viewed in the northern hemisphere late spring and southern hemisphere late autumn.
The famous spiral galaxy commonly known as the Whirlpool Galaxy (M51) lies in Canes Venatici and is marked here with a red ellipse. Other notable spiral galaxies in the cluster include M63, M94, M106 and NGC 4631. All are marked here with red ellipses. The globular cluster M3 is marked here with a yellow circle with a plus symbol superimposed on it.
The y-axis of this diagram is in degrees of declination with north as up and the x-axis is in hours of right ascension with east to the left. The sizes of the stars marked here relate to the star's apparent magnitude, a measure of its apparent brightness. The larger dots represent brighter stars. The Greek letters mark the brightest stars in the constellation. These are ranked by brightness with the brightest star being labeled alpha, the second brightest beta, etc., although this ordering is not always followed exactly. The dotted boundary lines mark the IAU's boundaries of the constellations and the solid green lines mark one of the common forms used to represent the figures of the constellations. Neither the constellation boundaries, nor the lines joining the stars appear on the sky.
图示来源： Adapted by the IAU Office of Astronomy for Education from the original by the IAU and Sky & Telescope. 来源链接
图示翻译状态: 尚未由审核人员批准
图示授权许可： 知识共享许可协议 署名 4.0 国际 (CC BY 4.0) 知识共享许可协议 署名 4.0 国际 (CC BY 4.0) 图标
相关术语表词条：
天球坐标
, 星座
, 漩涡星系
, 球状星团
, 视星等
, 赤纬
, 赤经（RA）
分类：
肉眼天文学
Want to make your own translation or version of this diagram? Then
download the SVG
version of this diagram in English (365.44 kB). You can edit this using
software like Inkscape (free) or Adobe Illustrator
(proprietary). Just remember to credit the author of the original appropriately.
You can also make your own version or translation of this diagram by adding adding text to a version of
this diagram with no text. Just download one of the following files:
Download Text-Free File ( 图像 82.86 kB)
Download Text-Free PDF File (PDF file 144.38 kB)
The diagram captions presented on the OAE website were written, translated and reviewed by a collective effort from the OAE, the OAE Centers and Nodes, the OAE National Astronomy Education Coordinators (NAECs) and other volunteers. You can find a full list of credits for our translation project here. All media file captions are released under a Creative Commons CC BY-4.0 license and should be credited to "IAU OAE". The media files themselves may have different licenses (see above) and should be credited as listed above under "credit".
If you notice a error in this diagram or its caption then please get in touch.
